Descrizione di prodotto

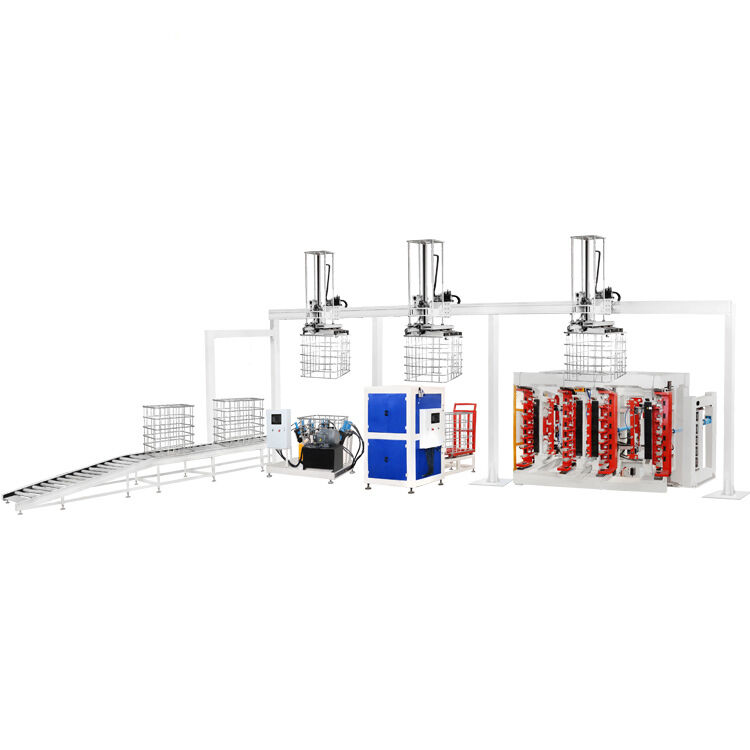

IBC Grid Cage Frame Automatic Production Line

Full Automatic IBC Tank Leakage Testing Machine Line

System Overview

This comprehensive automated production line integrates multiple specialized machines to create a complete IBC tank manufacturing solution. The system includes automatic valve welding, precision leakage testing, and automated stacking capabilities.

Key System Components

Automatic valve welding machine with hot melting installation
Dual-stage leakage testing with visual identity and pressure difference detection
Robotic arm handling for inner tank placement
Rotary table assembly station with manual pull rod and cover assembly
Automated stacking station for finished products

IBC Cage Frame Automatic Welding Machine

Hwashi's specialized production line for IBC cage frames incorporates complete automation from welding through final assembly. The integrated system requires minimal operator intervention.

Welding System Specifications

Welding Efficiency: 50 seconds per piece
Welding Source: 4 sets MF DC Power Source
Feeder Platform Options: Single Layer or Double Layer
Unloading System Options: Manual or Automatic Mechanical Arm

Production Capacity

50 seconds per piece

Main Frame Welding Technology

Four MF transformers precisely regulate six sets of welding electrodes, ensuring optimal quality at each welding point. The bilateral piano-style welding technique accelerates the process, completing each metallic grid mesh within one minute.

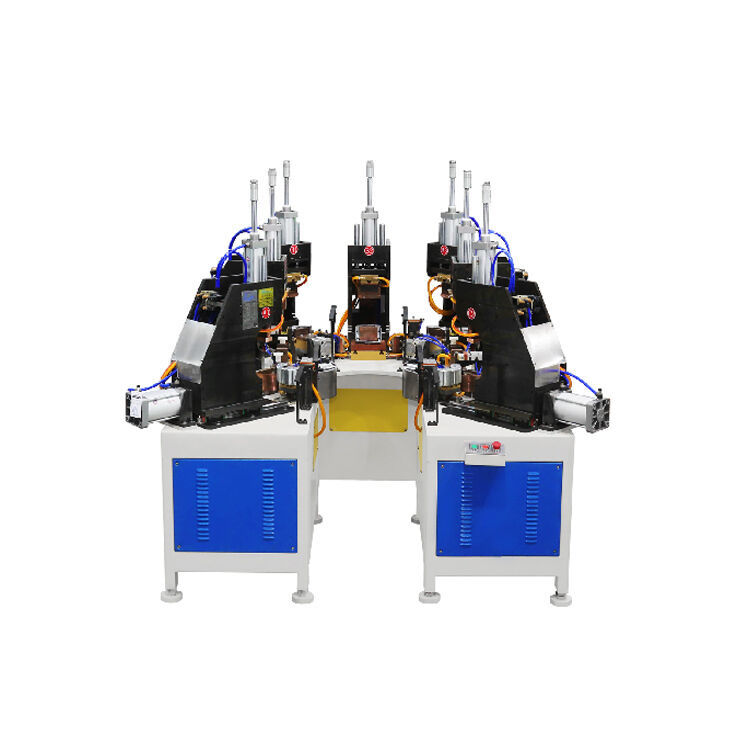

Six-Head IBC Frame Automatic Welding Machine

Advanced welding power system featuring four MF DC power sources enables simultaneous welding at six different spots. The dual-layer fixture feeder allows continuous operation with material loading during active welding cycles.

Flat Tube Mesh Welding Quality

The welding apparatus transforms tubes into flat mesh configurations with exceptional strength and robust quality. Each flat mesh is completed in approximately 60 seconds.

Vertical Double Station IBC Frame Bending Machine

Comprehensive processing ensures high precision bending with stable operations and remarkable efficiency.

Bending Process

The bending machine transforms flat mesh into precisely squared frames (1200±5mm * 1000±5mm) in 20-25 seconds.

Bending Beam Features

CNC processed bending beam ensures precise bending angles
Adjustable molds with 3mm vertical range increase bending flexibility
120-degree mold design creates smooth bending angles

Machine Frame Construction

Robust rectangle design with thicker steel columns and door-shaped cover panel provides exceptional firmness and stability.

Hydraulic Pressure Station

Specifically designed for pallet tank meshes, this hydraulic-powered station guarantees optimal bending performance.

IBC Cage Frame Locking Machine

Cohesive unit design provides exceptional precision in insertion, robust locking strength, and seamless operational stability.

Locking Efficiency and Quality

Adjustable clinching arm accommodates various IBC metallic cage designs
Hydraulic and pneumatic clinching arm design enhances machine efficiency
Automatic joining capability for pipe sides
Hydraulic clinching mold creates tight clinching spots to prevent cracking
Auto-sending hydraulic pressure station ensures smooth production flow

IBC Cage Frame Hole Making and Punching Machine

Hydraulic-powered machine creates precise holes in frames for secure base frame attachment.

Hole Making Efficiency and Quality

Complete hole making and punching process takes 25-30 seconds per frame.

Pressing heads with precision molds
Dedicated hydraulic station
Adjustable punching head locating panel with left-right and forward-backward positioning

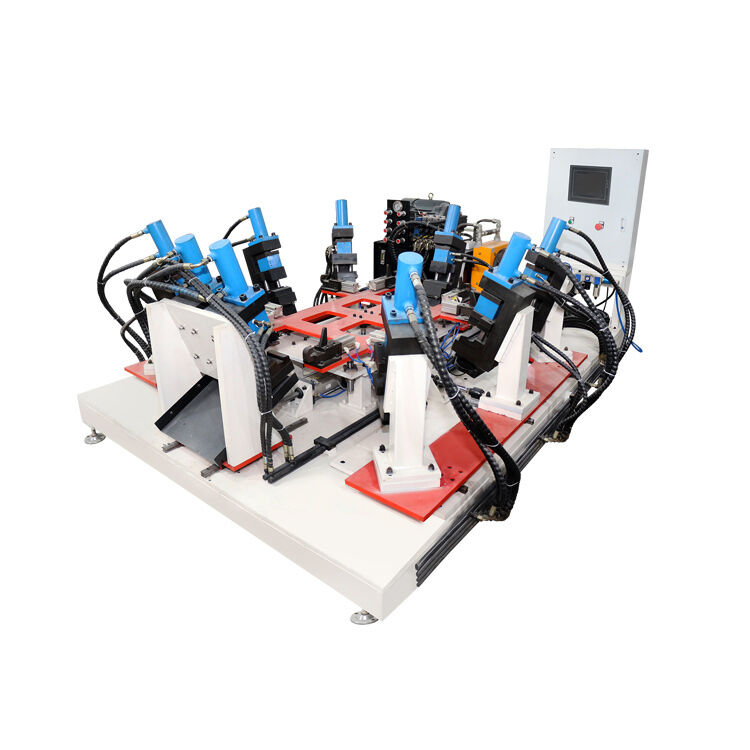

IBC Cage Base Frame Welding Machine

Horizontal structure design with 7 welding heads completes base frame welding automatically. Operators only handle loading and unloading functions.

Product Features

Horizontal structure with 7 welding heads for complete base frame welding
Automatic pallet unloading system
3 sets of MF DC 250KVA power sources
Enhanced product quality and production rate with reduced costs
Eliminates unstable welding quality from manual operations

Technical Specifications

Parameter	Specification
Product Name	IBC frame production line
Style	single row / double row
Max Welding Width	1200mm
Max Welding Length	4250mm
Brand	Hwashi
Equipped Power	350kVA/400kVA
Voltage	3p 380V
Material	Galvanized Pipe
Thickness of Pipe	1-2mm
Diameter of Pipe	14-20mm
Pipe Loading Method	manual/2 labors
Working Capacity	350-450(480-550) pcs/8 hours
Labor Demand	2-3 labors

Additional System Features

Tank Sending System for separated workshop operations
Conveyor transport eliminates human intervention
IBC Bended, Clinching and Punched Cage Placement Area
Welded Pallet Stocking Area
Auto Pallet Assemble Path
Pallet Welding Station
Rotating Cage and Pallet Assemble Area
Pallet Plate Stocking Area with Auto Feeding
