Name: Hwashi Customizable AC Pulse Spot Welding Machine for Hardware Industry Applications
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SP-100K
Price: 14,000.00 USD
Availability: InStock

Casa > Prodotti > Macchina della saldatura a punti >

Hwashi Customizable AC Pulse Spot Welding Machine for Hardware Industry Applications

Customizable Spot Welding Machine

AC Pulse Spot Welder

Hardware Industry Pneumatic Spot Welding Machine

Luogo di origine:

Cina

Marca:

HWASHI

Certificazione:

CE/CCC/ISO

Numero di modello:

WL-SP-100K

Contattici

Richieda una citazione

Dettagli del prodotto

Nome del prodotto:

Hwashi Customisable AC Pulse Spot Welding Machine per diversi requisiti di saldatura nell'industria

Applicazione:

saldatura dell'acciaio di alluminio di rame

Misurare:

850 x 900 x 1850 mm

Peso:

450 kg

Condizione:

Nuovo

Garanzia:

12 mesi

Certificato:

CE/CCC/ISO

vita utile:

8-10 anni

Termini di trasporto & di pagamento

Quantità di ordine minimo

1 insieme

Prezzo

Negoziabile

Imballaggi particolari

pacchetto di legno degno di mare

Tempi di consegna

7-30 giorni lavorativi dopo aver ricevuto il pagamento

Termini di pagamento

L/C, T/T

Capacità di alimentazione

50 set al mese

Prodotti relativi

Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current

Ottenga il migliore prezzo

Video

Hwashi Customizable AC Pulse Spot Welding Machine for Hardware Industry Applications

Ottenga il migliore prezzo

Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Technology for Consistent Metal Sheet Welding

Ottenga il migliore prezzo

Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine con tecnologia a 1000Hz per la saldatura costante di lamiere metalliche

Ottenga il migliore prezzo

Contattici

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contatto ora

Descrizione di prodotto

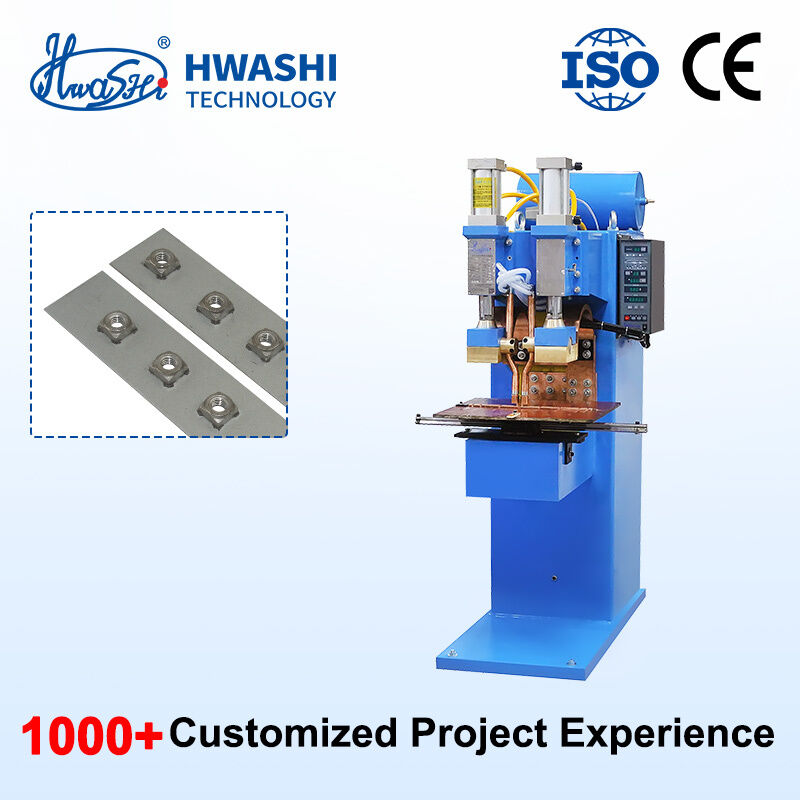

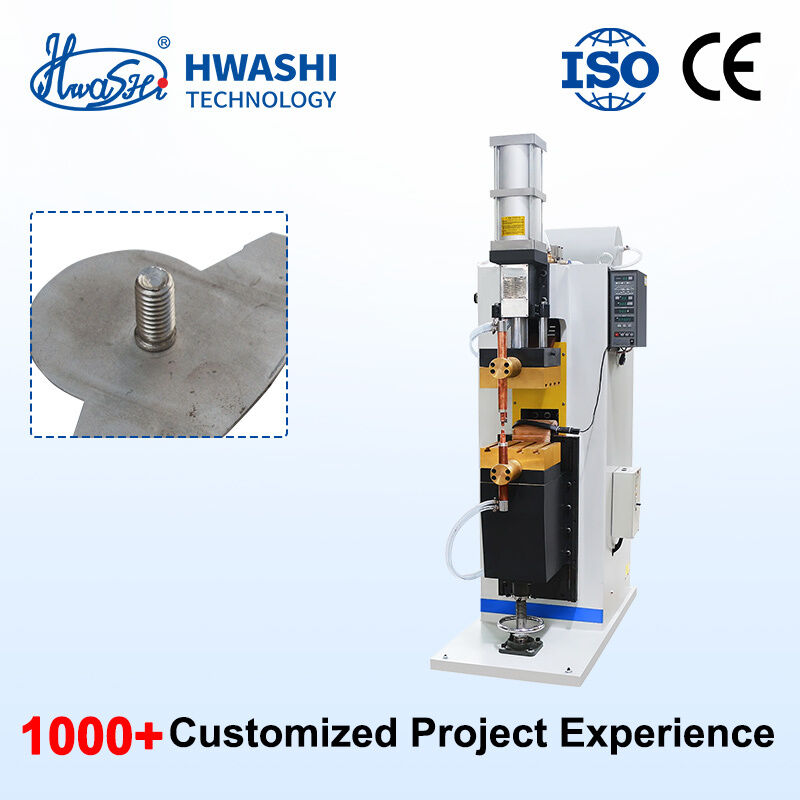

Hwashi Customizable AC Pulse Spot Welding Machine

The Hwashi AC Pulse Spot Welding Machine is engineered to meet diverse welding requirements in the hardware industry. This customizable solution transforms standard mains supply into precise welding power for various applications.

The AC pulse spot welding machine utilizes standard mains supply to lower voltage and increase electric current. This low-voltage, high-current energy is transmitted through electrodes to the connection point of two work pieces. The resistance at the linkage generates high temperatures, causing the metal to reach molten state and effectively welding the components together.

Key Features

Three control functions: constant primary and secondary current, constant voltage
Automatic adjustment of welding power and welding current
Complete automation with automatic cycle control for each program segment
Automatic repair welding when current levels are insufficient
Direct parameter setting via control panel for different welding models
Support for both single welding and continuous welding operations
Individual setting capability for intensity and time of welding current
Pneumatic control with delay functionality
Storage capacity for 9 different welding models
Silicon controlled phase shift triggering for precise current adjustment
Automatic voltage compensation for stable welding current

Technical Specifications

Model	Input Voltage	Related Capacity	Max Short Circuit Current	Duty Cycle Rate	Electrode Force	Electrode Stroke	Cooling Water
WL-S-5K	220	5	1	25	30	25	4
WL-S-10K	380 1PH	10	2.5	25	100	50	4
WL-S-16K	380 1PH	16	4.5	25	100	50	6
WL-SP-25K	380 1PH	25	7	25	350	80	6
WL-SP-35K	380 1PH	30	9	25	350	80	6
WL-SP-50K	380 1PH	50	13	25	800	100	6
WL-SP-75K	380 1PH	75	18	25	1000	100	8
WL-SP-100K	380 1PH	100	20	25	1000	10	8
WL-SP-150K	380 1PH	150	25	25	1000	8100	10
WL-SP-200K	380 1PH	200	30	25	1500	100	10
WL-SP-250K	380 1PH	150	38	25	1500	100	12
WL-SP-300K	380 1PH	300	45	25	2000	100	16
