Hwashi 7-Axis CNC Double Heads Sheet Metal Spot Welding Machine with Medium Frequency Inverter Power Supply

7-Axis CNC Control Sheet Metal Spot Welding Machine

Double Heads Welding Automatic Sheet Metal Welder

Medium Frequency Inverter Power Supply CNC Sheet Metal Welder

Luogo di origine:

Cina

Marca:

HWASHI

Certificazione:

CE/CCC/ISO

Contattici

Richieda una citazione

Dettagli del prodotto

Nome del prodotto:

Hwashi CNC Seven 7axis Double Heads Sheet Metal Spot Weldinq Machine, Saldatore automatico di lamier

Garanzia:

12 mesi

Condizione:

Nuovo

Vita utile:

8-10 anni

Potenza (kW):

160kvax2

Frequenza:

1000Hz

Spessore massimo:

2+2 mm

Termini di trasporto & di pagamento

Quantità di ordine minimo

1 set

Prezzo

Negoziabile

Imballaggi particolari

pacchetto di legno degno di mare

Tempi di consegna

7-30 giorni lavorativi dopo aver ricevuto il pagamento

Termini di pagamento

L/C,T/T

Capacità di alimentazione

50 set al mese

Prodotti relativi

Video

Saldatrice a punti automatica HWASHI con corrente massima di 34000A, larghezza regolabile di 1200 mm e controllo touchscreen digitale per lamiera

Ottenga il migliore prezzo

Video

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine per Squatrack

Ottenga il migliore prezzo

Video

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Saldatrice di lamiere metalliche

Ottenga il migliore prezzo

Video

Hwashi Ultima macchina di saldatura automatica per porte a lamiera di metallo

Ottenga il migliore prezzo

Contattici

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contatto ora

Descrizione di prodotto

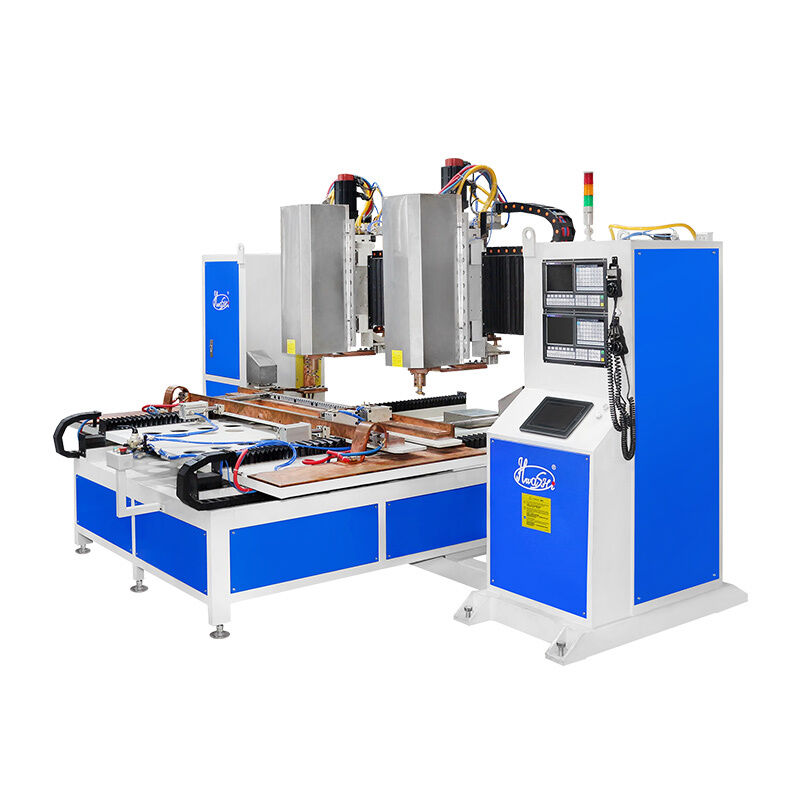

Hwashi CNC Seven 7-Axis Double Heads Sheet Metal Spot Welding Machine

This automatic sheet metal welder for squat racks is custom-engineered to meet your specific welding requirements and product specifications.

Advanced CNC Control System

The machine features two independent welding mechanisms controlled by a sophisticated CNC servo system. This includes X-direction mobile welding and Y-direction table movement, enabling precise welding at various positions. The welding mechanisms also provide Z-direction lifting and A-direction rotation capabilities, with the CNC system coordinating all seven axes for optimal positioning and welding performance.

Key Features & Benefits

Medium frequency inverter power supply for consistent welding performance
Fully automated welding production with programmed position control
Operator only required for product loading and unloading
Significantly improved product quality and production efficiency
Reduced production costs and elimination of manual welding inconsistencies
High automation degree with reliable, repeatable results

Industrial Applications

Primarily used for welding low-carbon steel, low-alloy steel, stainless steel, coated steel, plate and round steel that cannot be efficiently welded by standard fixed welders. Widely applied across multiple industries including automotive manufacturing, civil sheet metal fabrication, security doors, cabinet production, and household appliances.

Customized Engineering Solutions

We provide comprehensive customized services tailored to your specific welding requirements. Our engineering team will collaborate with you to analyze your samples or technical drawings and develop optimal technical proposals for your application.

Welding Quality & Performance

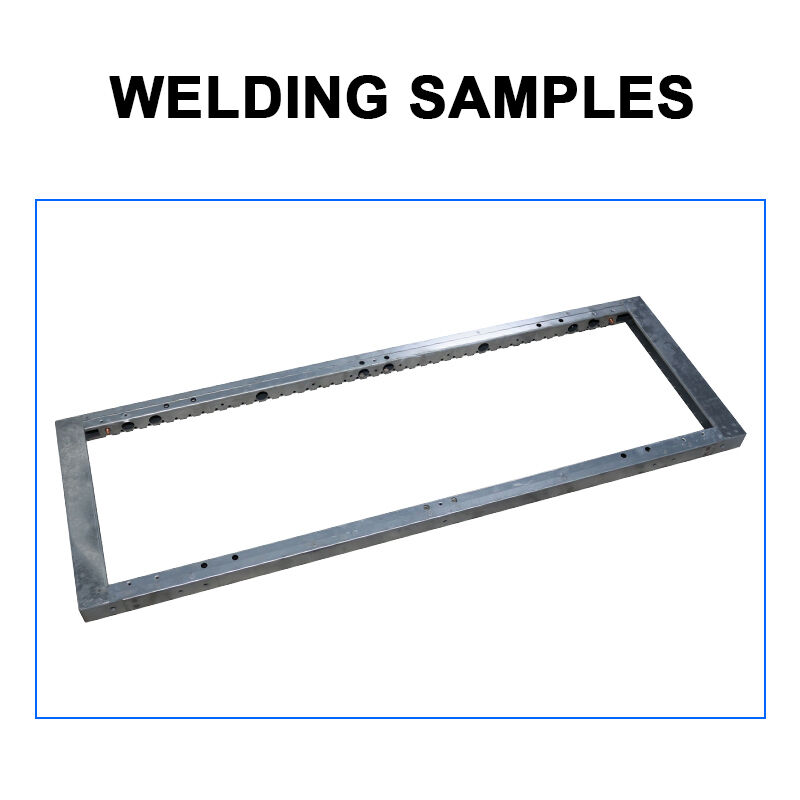

Produces firm solder joints with consistent welding effects and reliable performance across all applications.

Technical Specifications

Item	Parameter
Rated Power	120KVA * 2
Duty Cycle	50%
Frequency	1000Hz
Effective Welding Length	1200mm
Effective Welding Width	2200mm
Welding Driving Power	Servo System
Maximum Moving Speed	500mm/s
Machine Dimension	L3800mm * W2600mm
Rated Air Pressure	0.6MPa
Water Temperature	10-25°C
